LED Shoebox Light

CH-SL-W200-S2
1. Power: 200W
2. Voltage: 100-277VAC / AC 100-347V / AC200-480V / 50-60Hz.
3. Lumen: 130lm/w
4. Beam Angle: Type II,Type III,Type V
5. IP65
6. 5 Years warranty
7. Certificate: ETL. cETL. CE. ROHS
Quantity:
Contact Now
add to cart
            Features

            1.  LED Shoe box parking lot lights used High luminous efficiency and stability with using the world-class accessories LEDs/ LED Driver/ ect.  High brightness 130LM/W;  Black and Brozen fixtures;
            2.  Multiple functions: Photocell sensor, DALI, 1-10V and other smart dimming are your options;
            3.  PF>0.95 CIR>80;
            4.  Increase the size of the luminous surface, and thelight is softer;
            5.  Isolated constant current led driver, the light workstably; no flicker;

            Parameters
            Part NumberCH-SL-W200-S2
            Dimensions589x280x70mm
            LED TypeLED 3030SMD
            Power200W
            Voltage100-277VAC 50-60Hz.
            Luminous130LM/W
            Beam AngleType II,Type III,Type V
            CCT2700-6500K
            IP GradeIP65

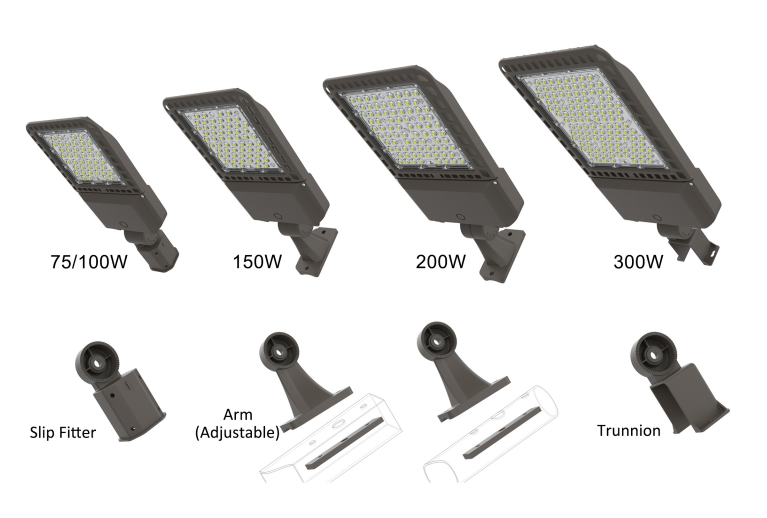

            LED Shoebox Light Series
            ModelParametersColor/CCT
            CH-SL-W75-S2
            DIM: 519*210*70mm
            Lumen: 9,700lm
            		2700-6500K
            CH-SL-W100-S2
            Dim: 519*210*70mm
            Lumen: 13,000lm
            		2700-6500K
            CH-SL-W150-S2
            Dim: 565*250*75mm
            Lumen: 19,500lm
            		2700-6500K
            CH-SL-W200-S2
            Dim: 589x280x70mm
            Lumen: 26,000lm
            		2700-6500K
            CH-SL-W300-S2
            Dim: 674*300*80mm
            Lumen: 39,000lm
            2700-6500K

             ​

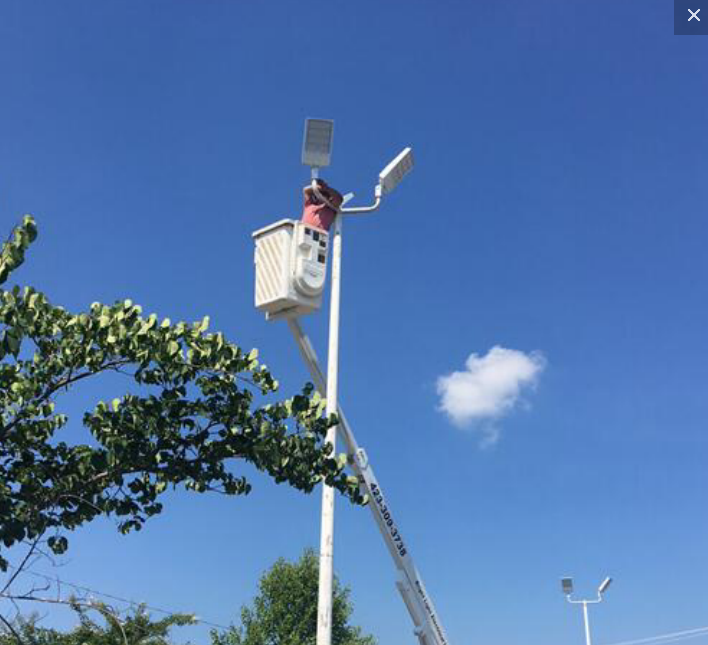

                                                                                   Applications

            Widely used in Parking lot areas, courtyards, commercial area and site lighting, airports, roadways, compuses and streetscapes and etc.

            LED Shoebox parking lot lights china manufacturer

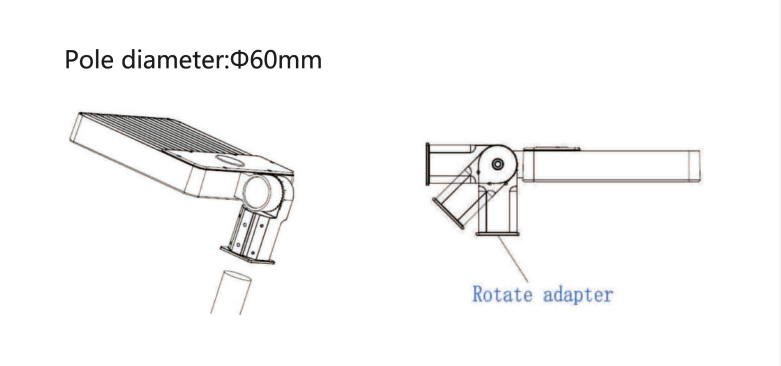

            Installation Instructions


            LED Shoebox parking lot lights china manufacturer


            300w LED Shoebox parking lot lights manufacturer
