100W LED WALL PACK LIGHT

CH-WPK-W100-S7
1. Power: 100W
2. Voltage: 100-277VAC / AC 100-347V / AC200-480V / 50-60Hz.
3. Lumen: 130lm/w
4. Beam Angle: 120°
5. IP65 Glass cover
6. 5 Years warranty
7. Certificate: DLC. ETL. cETL. CE. ROHS.
Quantity:
Contact Now
add to cart
            Features

            1.  LED Wall Pack is uses aluminum alloys waterproof IP65 body can be very shatter resistant and handle all weather conditions. It is an exterior light fixture suitable for outdoor use, widely used for building exterior and backyard lighting;

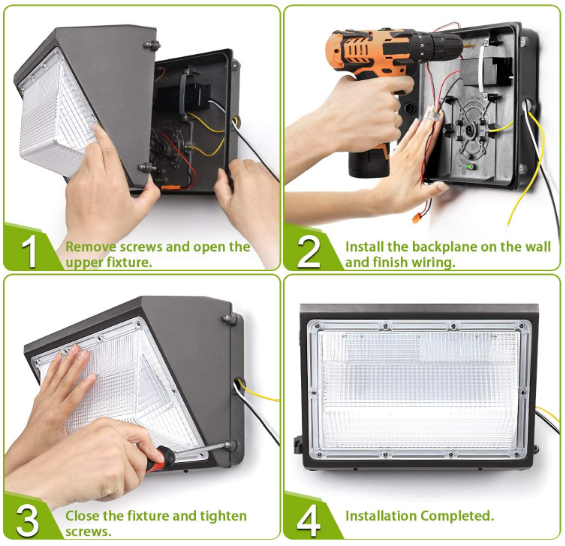

            2. LED wall pack light can be installed using J-BOX or fixed directly on the wall using the installation accessories included in the packaging box. The back cover of the wall light is equipped with a spirit level, making installation easier. It is expected to take five minutes to install one Wall Pack Lights widely used for for garden, house, garage, driveway, yard etc;
            3.  Wattage: 40W 60W 80W 100W 120W;
            4.  Certificate: DLC, ETL, CE, ROHS, LVD, ERP
            5.  5 Years warranty

            Parameters
            Part NumberCH-WPK-W100-S7
            Dimensions 364*233*163mm
            LED Type2835SMD LED SMD
            Power100W
            Voltage100-277VAC  100-347V / AC200-480V / 50-60Hz.
            Luminous130LM/W
            Beam Angle120°
            CCT2700-6500K
            IP GradeIP65

            LED Wall Pack Light Series
            ModelParametersColor/CCT
            CH-WPK-W40-S7
            DIM: 364*233*163mm
            Lumen: 5,200lm
            		2700-6500K
            CH-WPK-W60-S7
            Dim: 364*233*163mm
            Lumen: 7,800lm
            		2700-6500K
            CH-WPK-W80-S7
            Dim: 364*233*163mm
            Lumen: 10,400lm
            		2700-6500K
            CH-WPK-W100-S7
            Dim: 364*233*163mm
            Lumen: 13,000lm
            		2700-6500K
            CH-WPK-W120-S7
            Dim: 364*233*163mm
            Lumen: 15,600lm
            		2700-6500K

            40W LED Wall Pack lights manufactory
             ​

                                                                                        Applications

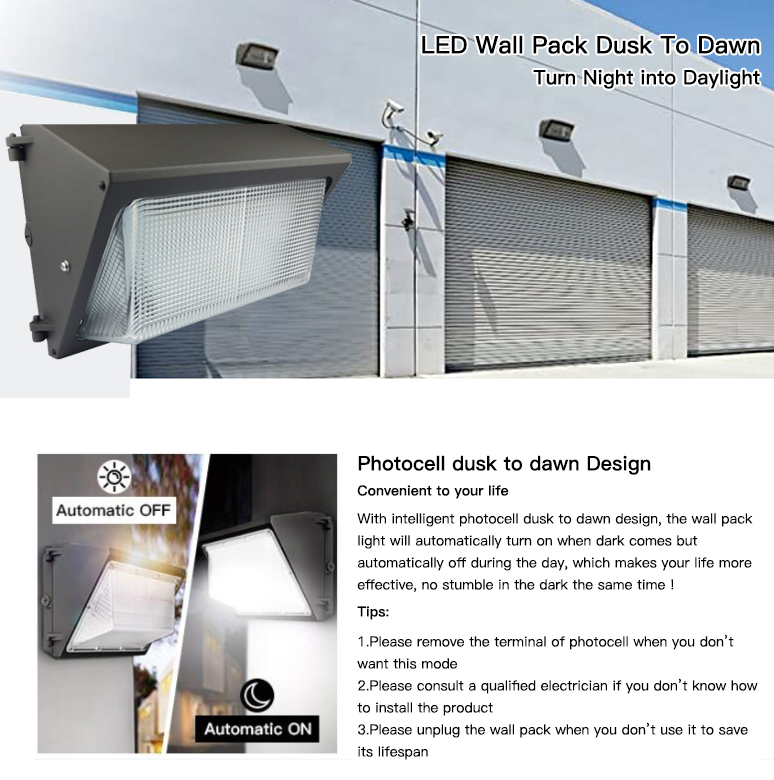

            This led wall pack with photocell is perect security- lighting for mounting 10-22ft high on walls to any standard junction box, or conduit mount to link several lights in series and control them together. It's ideal for commercial or industrial lighting, such as hotel, store, garage, warehouse, garden, yard. porch etc.


            40W LED Wall Pack lights manufacturer






             ​​​
